Szczegóły Produktu:
|
|
| Miejsce pochodzenia: | WYPRODUKOWANO W CHINACH |
|---|---|
| Nazwa handlowa: | BTUTEST |
| Orzecznictwo: | SGS, INTERTEK |
| Numer modelu: | WAW-600B/WAW-1000B/WAW-1500B/WAW-2000B |
|
Zapłata:
|
|
| Minimalne zamówienie: | 1 zestaw |
| Cena: | Zbywalny |
| Szczegóły pakowania: | Sprzęt do badania gleby Standardowe drewniane pudełko eksportowe |
| Czas dostawy: | 6 dni po płatności |
| Zasady płatności: | L/C, D/A, D/P, T/T, Western Union |
| Możliwość Supply: | 100 zestawów miesięcznie |
|
Szczegóły informacji |
|||
| Maksymalna siła (kN): | 100/200/300/600/1000/1500/2000 | Klasa dokładności: | Klasa 1 (opcja 0,5) |
|---|---|---|---|
| Maksymalna przestrzeń kompresji (mm): | 500/600/600/650/650 | Maksymalna przestrzeń na rozciąganie (mm): | 600/700/700/700/800/800 |
| Skok tłoka (mm): | 200/200/200/200/250/250 | Okrągły zakres próbek (mm): | Φ6–22/Φ10–32/Φ13–40/Φ13–40/Φ16–50/Φ20–70 |
opis produktu
| Feature | Product Advantage | Customer Benefit |

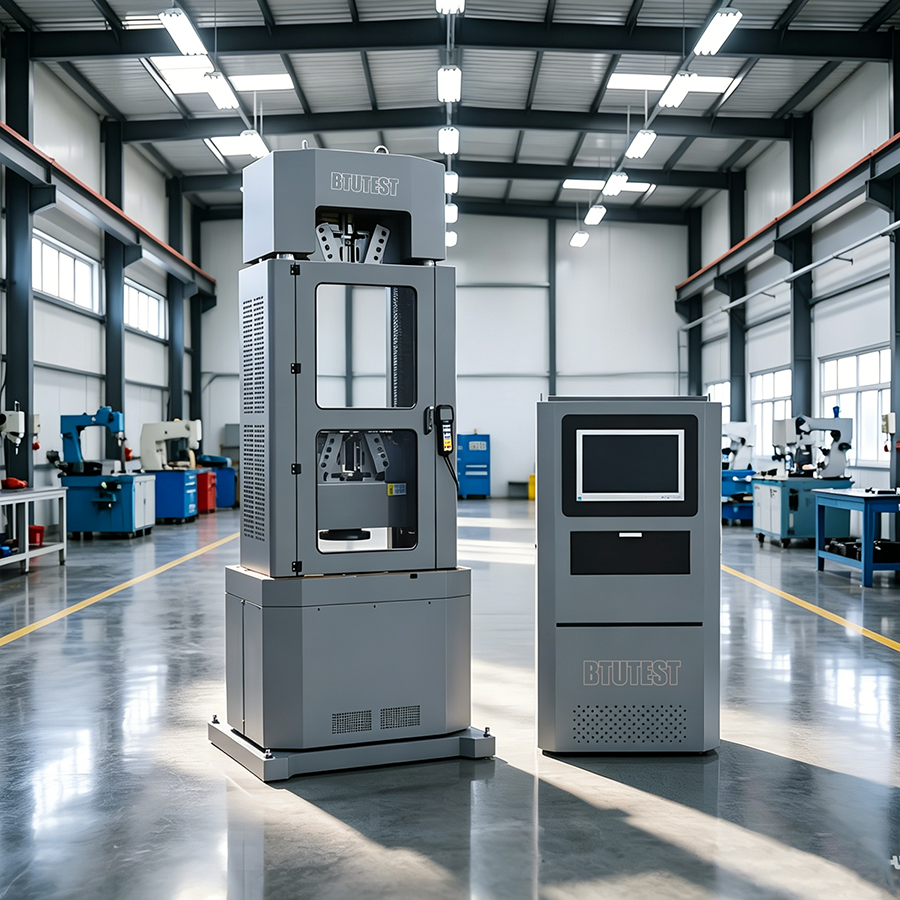

| Six‑column high‑stiffness frame | Better axial & lateral stiffness than four‑column designs | More reliable test results, minimal deflection under high loads |
| Electro‑hydraulic servo closed‑loop control | 4 modes: force, deformation, displacement, strain – high accuracy & fast response | Meets ISO 6892‑1 method A1/A2; precise control for critical tests |
| Dual‑space design (tension upper / compression lower) | No need to change fixtures between different tests | Saves time, increases daily test throughput (up to 40% efficiency gain) |
| Large test space (800 mm tensile / 650 mm compression) | Accommodates long specimens and large components | One machine handles more sizes – no need for custom equipment |
| Long piston stroke (200/250 mm) | Handles large deformation and long specimens | Versatile – suitable for both short and long samples |
| Accuracy Class 1 (Class 0.5 optional) | Meets EN ISO 6892-1, ASTM A370, etc. | Data accepted globally, pass audits with confidence |
| Full hydraulic gripping (standard) | V‑shaped & flat jaws – strong clamping, no slippage | Operator‑friendly, consistent results, reduces fatigue |
| Powerful software + remote support | Cyclic, creep, relaxation, holding; auto‑analysis; remote updates | Advanced testing for R&D; reduced downtime; customizable reports |
| Overload protection limit sensor | Automatic stop at set limits | Protects machine and operator, reduces downtime |
| Wide model range (100–2000 kN, 6 models) | Covers small rebar to heavy structural steel | Choose exactly the capacity you need – no waste |
| SGS & CE certified | Third‑party quality verification | Builds trust with international buyers, easier market access |
Customer Benefits Summary(place near inquiry button):
✔️Reliable data– six‑column stability meets EN ISO/ASTM.
✔️High efficiency– dual‑space, no fixture change.
✔️Versatile– tension, compression, bending, shear – one machine.
✔️Large capacity– up to 2000 kN & 800 mm space.
✔️Trusted quality– SGS & CE certified.
| Standard | Material / Application | Why It Matters |
| EN ISO 6892‑1 | Tensile testing of metals | Mandatory for Europe, Middle East, Asia |
| EN ISO 15630‑1 | Test methods for steel for concrete reinforcement | Essential for rebar suppliers to EU projects |
| EN ISO 7500‑1 | Calibration of testing machines (force) | Proves force traceability |
| EN 10002 | Tensile testing (historical standard) | Compatibility with older specifications |
| ASTM A370 | Mechanical testing of steel products | Required for North American buyers |
| UNI 7676 | Italian metal tensile standard | Key for Italian market |
“We can pre‑install test templates for ISO, ASTM, EN, and other standards. One‑click switch between standards in the software.”
| Parameter | WAW-100B | WAW-300B | WAW-600B | WAW-1000B | WAW-1500B | WAW-2000B |
| Max Force (kN) | 100 | 300 | 600 | 1000 | 1500 | 2000 |
| Accuracy Class | Class 1 (0.5 opt.) | same | same | same | same | same |
| Max Compression Space (mm) | 500 | 600 | 600 | 600 | 650 | 650 |
| Max Tensile Space (mm) | 600 | 700 | 700 | 700 | 800 | 800 |
| Piston Stroke (mm) | 200 | 200 | 200 | 200 | 250 | 250 |
| Round Specimen Range (mm) | Φ6–22 | Φ10–32 | Φ13–40 | Φ13–40 | Φ16–50 | Φ20–70 |
| Flat Specimen Thick (mm) | 0–15 | 0–20 | 0–20 | 0–40 | 0–40 | 0–50 |
| Compression Plate Size (mm) | Φ110 | Φ150 | Φ200 | Φ225 | Φ225 | 240×240 |
| Main Frame Dimensions (mm) | 500×700×1740 | 760×565×1960 | 760×565×2110 | 870×635×2260 | 1050×850×2550 | 1100×850×2850 |
| Control Cabinet (mm / kg) | 640×590×1400 / 300kg | same | same | same | 800×600×1670 / 300kg | same |
| Main Frame Weight (kg) | 1400 | 1500 | 1800 | 2500 | 4500 | 6000 |
Quick selection guide:
Standard accessories (included):
Optional accessories:
Service & support:
“We are the direct manufacturer. Factory price, direct support, faster spare parts delivery.”
| Scenario | Recommended Model | Key Advantage | |
| Construction material lab | Test rebar, structural steel – need high accuracy & efficiency | WAW-600B / 1000B | Six‑column stability, dual‑space, servo control |
| Large infrastructure project | Long rebar (up to 800 mm), heavy steel sections | WAW-1500B / 2000B | 800 mm tensile space, 2000 kN capacity, long stroke |
| Third‑party testing lab | High volume, need reliability & traceable data | WAW-1000B / 2000B | Class 1 (0.5 opt.) accuracy, SGS certified, remote support |
| University/research institute | Advanced tests (cyclic, creep, relaxation) | WAW-300B / 600B | Powerful software, servo control, automatic data analysis |
| Steel fabrication / heavy machinery | Thick plate (up to 50 mm), large diameter round bars (Φ70 mm) | WAW-2000B | Wide gripping range (Φ20–70 mm, 0–50 mm flat) |
| Quality certification center | Need to meet multiple international standards | All models | Pre‑loaded EN ISO, ASTM, etc.; one‑click standard switch |
Case 1 – Large Infrastructure Project in Pakistan
Machine: WAW-1000B
“We test rebar and steel plates for a highway project. Six‑column frame gives extremely stable results – matches third‑party lab 100%. Dual‑space saves us 2 hours daily.”
– Project Quality Manager
Case 2 – Third‑Party Lab in Egypt
Machine: WAW-600B
“We process hundreds of samples weekly. Servo control ensures precision. The software auto‑calculates yield strength and modulus – huge time saver. SGS certification helped us win government contracts.”
– Lab Director
Case 3 – University Research Lab in Brazil
Machine: WAW-300B
“We need cyclic and creep tests for alloy research. The servo system handles it perfectly. Remote support helped us customize report templates in one day.”
– Professor, Materials Engineering
Case 4 – Steel Fabricator in India
Machine: WAW-2000B
“We test large diameter rounds (Φ65 mm) and thick plates. Hydraulic gripping is effortless – no slippage. The 800 mm tensile space fits our longest rebar.”
– Plant Engineer
Case 5 – Precast Concrete Plant in Indonesia
Machine: WAW-600B
“We upgraded from an old machine. The dual‑space design and servo control improved our test consistency. Operators love the hydraulic jaws.”
– Quality Supervisor
